HYDROSTATIC TESTING PUMPS





Rothenberger Hydrostatic Test Pump TP25

For quick leak testing of smaller piping systems and containers in plumbing and heating installations there is no better test pump than the Rothenberger TP25 Hydrostatic Test Pump. 25 bar pressure testing pump. The biggest advantage of the TP 25 is that build-up pressure can be discharged with the dual-valve system (twin valve). Because both of the valves are constructed in monoblock design the potential sources of leaks are held as small as possible. In addition, thanks to the rubber grip, slipping is prevented. Special attention can also be found in the details: A Duramant-epoxy coating with 5 year warranty helps to make the tank weather and cold proof. The TP 25 is delivered with an integrated pressure monitor. When desired, a service package composed of the most important wearing parts can be ordered separately.


Description
lbs.
No. $
Price
Add to Cart

 Rothenberger Hydrostatic Test Pump TP25

12.50  60250 $275.90

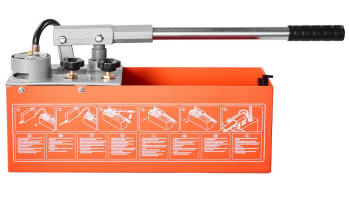

RP50 Hydrostatic Pressure Test Pump 61004

  • Extremely rugged handle hinge with long shaft. Lubrication nipple for low-wear pressure transmission on piston.
  • Mono-block brass shut-off system reducing risk of leaks from threaded connections. Built-in precision shut-off valve (fill and drain valve).
  • Weather proof solid cover with comprehensive pressure gauge protection.

Testing pump for quick precision testing of pressure or air-tightness in pipe-work systems and containers used in plumbing and heating installations. Also for compressed air, steam, cooling, oil and sprinkler installations. Applications also in the field of boiler and pressure vessel manufacture. No fitter should be without one Hydrostatic Test Pump RP50.

Tank capacity:    3.2 gallons
Suction capacity:    1.5 oz/stroke

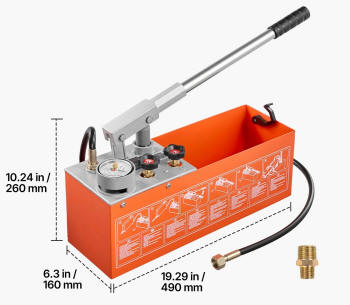

Dimensions:    28.5" x 6.8" x 10.3"
Connections:    R 1/2"



DOWNLOAD PARTS BREAKDOWN HERE

Rothenberger or Rennsteig Hydrostatic Test Pump RP50

For quick and exact compression testing and leak testing on piping systems and containers in plumbing and heating installation, boiler and pressure vessel manufacture, and filling solar systems. The Rothenberger Hydrostatic Test Pump RP50 is an indispensable testing device for every installer: fill and compression test in one set up, with water or oil.

Features:

  • Pressure test using oil and water
  • Weather and cold proof galvanized tank. Additionally protected with epoxy coating.
  • High volume feed for quick filling on long stroke. Fine precision pressure equalization and adjustment on short stroke.
  • Distortion proof handle with ergonomic rubber grip doubles as carrying handle
  • Specially ground distortion free polyamide piston, 30 mm Ø, wear resistant
  • Twin valve system and valve spindle with rust-proof ball head ensure constant pressure levels
  • Test hose manufactured from steel reinforced material to reduce measurement errors
  • 5 year rust free guarantee on tank
RP50 Hydrostatic Pressure Test Pump 61004
  • Long piston guides with o-ring seal and dirt scraper. Suction filter protects against dirt and wear. One way flow.
  • Large pressure gauge, easy to read, fine scale, 3 measurements (bar, psi, MPa).
Testing and pressure range:
0 - 60 bar,    1 bar steps
0 - 860 psi,    20 psi steps
0 - 6 MPa,    0,1 MPa steps

 Rothenberger RP 50 Testing Pump

Description pressure
lbs.
No. $
Price
Add to Cart

 Rothenberger RP 50 Testing Pump  60 bar  20.00  60200 $470.90
 Rennsteig RP 50 Testing Pump 60 Bar 20.00 61004 $390.00




Spare Parts No. $
Price
Add to Cart

 Replacement pressure gauge, R 1/4" connection  61315 $52.90
 Replacement piston  61300 $71.80
 Maintenance Kit 61309 $65.90
