Tee extractor bell with double vee block for accurate positioning producing precision 90° branches.

• Safe, precision joints installed without cutting the tube
• Easy introduction into the drill hole
• Controlled and uniform material manipulation
• Standard specification overlaps and optimum capillary gaps
• No finishing necessary
• For .098 wall thickness annealing the tube is necessary

Drill the pilot hole using the self centering UNIDRILL set to the branch O.D. size.

Introduce the tee extractor hook into the drilled hole and screw the bell firmly to the tube wall.

Hold the tee extractor firmly in place during extracting especially for the final few turns.

Set the branch insert depth with the adjustable cam pincer.

The UNIDRILL Automatic is calibrated for each branch size and is easily adjusted to provide the correct diameter hole for each tube tee extractor hook.

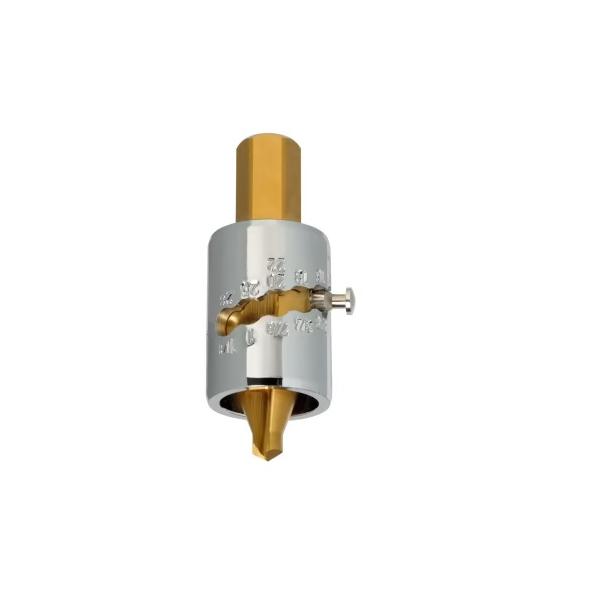

Rothenberger UNIDRILL^® Automatic 42

Exceptional quality HSS drill for rapid, burr-free drilling. Self centering drill tip provides precise location without the need for a center punch.
By adjusting the drill to the required branch size, the hole automatically corresponds to the size required for hook entry. The drill stop prevents over sizing or damage to the tube wall.

Rothenberger Tee Extractors
