Riexinger BSM 630
Plastic pipe band saw Ø 50 - 630 mm with optional equipment

The BSM 630 is the cost-effective, robust solution for manual sawing of plastic pipes with a diameter of 200 mm to 630 mm.

Thanks to the continuously tilt-table saw arm, angle cuts up to 45° are possible. Both the machine stand and the saw frame are made of a torsion-resistant steel construction. The ball-bearing mounted saw blade deflection ensures a smooth and precise running of the saw blade and the spring-supported blade tensioning device allows an easy saw blade change. Safety is ensured by a two-hand ON-OFF switch with motor protection and brake electronics.

All benefits at a glance

Machine stand and saw frame in robust, torsion-resistant steel construction

Saw blade deflection with ball bearings

Band tensioning device with spring support

Angle cuts 0°- 45° by tilt-table saw arm to one side

Two-hand ON-OFF switch with motor protection and brake electronics

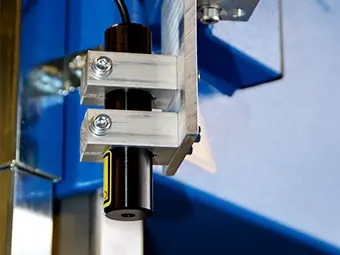

Laser cut detection

The laser device for cutting detection for the BSM 630 enables precise and automated detection of the cutting lines. This significantly improves accuracy and efficiency when sawing pipes.

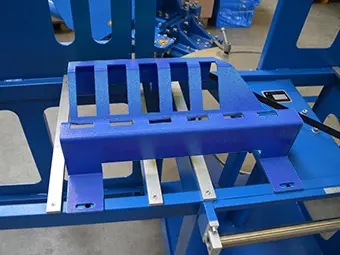

Attachment for small plastic pipes

With the optional attachment table for small plastic pipes it is possible to saw pipes in the sawing range between 50 and 200 mm diameter.

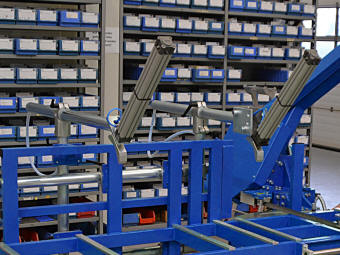

Pneumatic clamping

The pneumatic clamping system ensures a particularly secure hold of the plastic pipe to be cut. In addition, the operator’s handling between individual saw cuts is greatly simplified.

Technical data

Measurements
Length:	2.500 mm
Width:	2.500 mm
Height:	2.350 mm
Weight:	450 kg
Sawing range:	200 – 630 mm

Electrical connection

Operating voltage:	400 V
Frequency:	50/60 Hz
Fuse:	16 A
Installed load:	2,5 kW

Plastic pipes, composite pipes and plastic pipes made of solid and hollow sheets are commonly used in manufacturing and construction for transportation purposes of various media (e.g. water, sewage and rainwater transport) and as a part or self-contained structural elements.

Production of plastic pipes takes place in a continuous process, while processing, including cutting and joining, is most often performed in series, and in case of custom orders, individually.

Cutting plastic pipes requires appropriate equipment in the production facility, i.e. a band saw. Saws designed for cutting plastic and GRP pipes vary in size and functionality: manual saws, semi-automatic and fully automatic machines, cutting at different angles and in an arc.

We offer professional band saws for plastic pipes and cutting solutions from leading German manufacturer Eugen Riexinger GmbH & Co. KG. All band saws and cutting machinery devices are designed to meet the requirements of intensive usage in production plants and workshops that specialize in processing of plastics. First of all: frames are robust and resistant to the twisting forces acting on the machine during cutting. Secondly: operation is intuitive, safe and problem-free. Finally, our saws can make almost any type of cut in solid, thin-walled, chamber and composite pipes of diameter up to 4600 mm.
