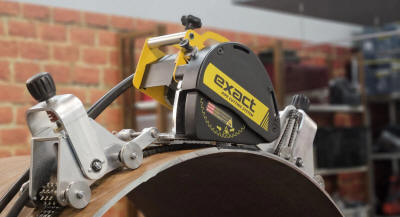

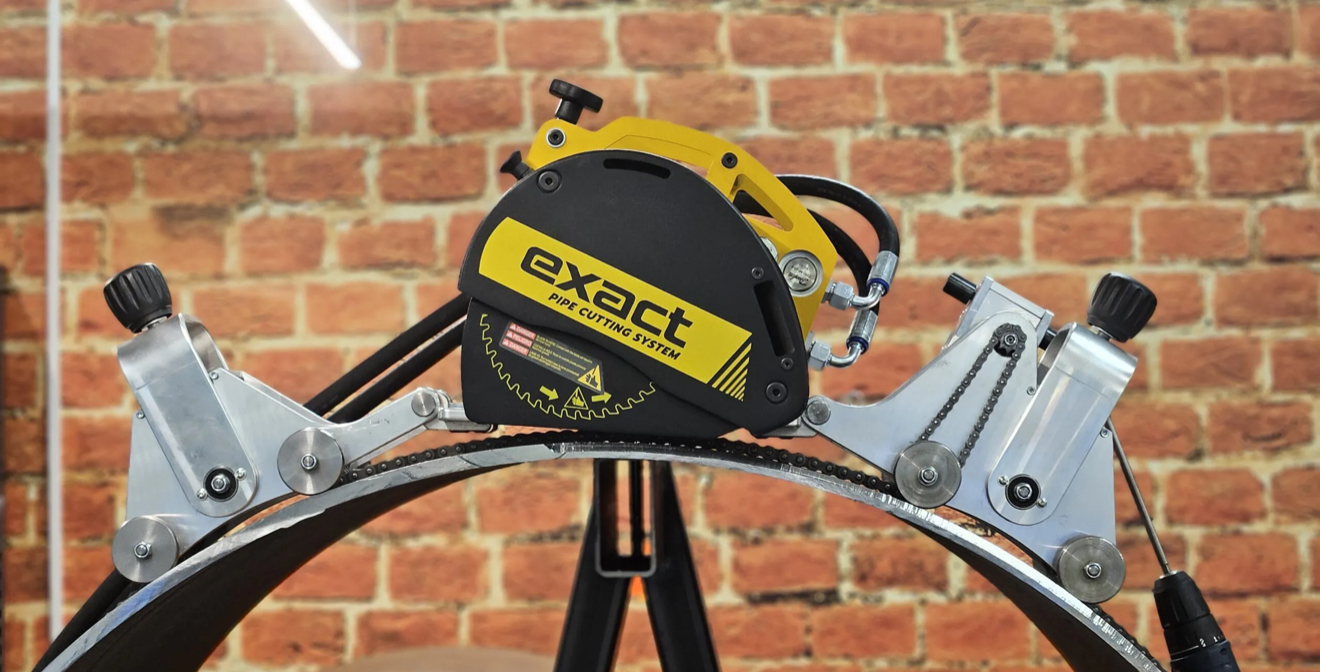

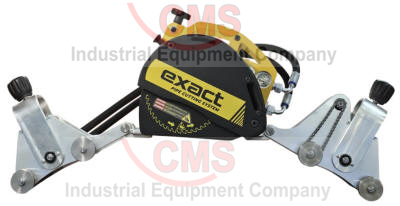

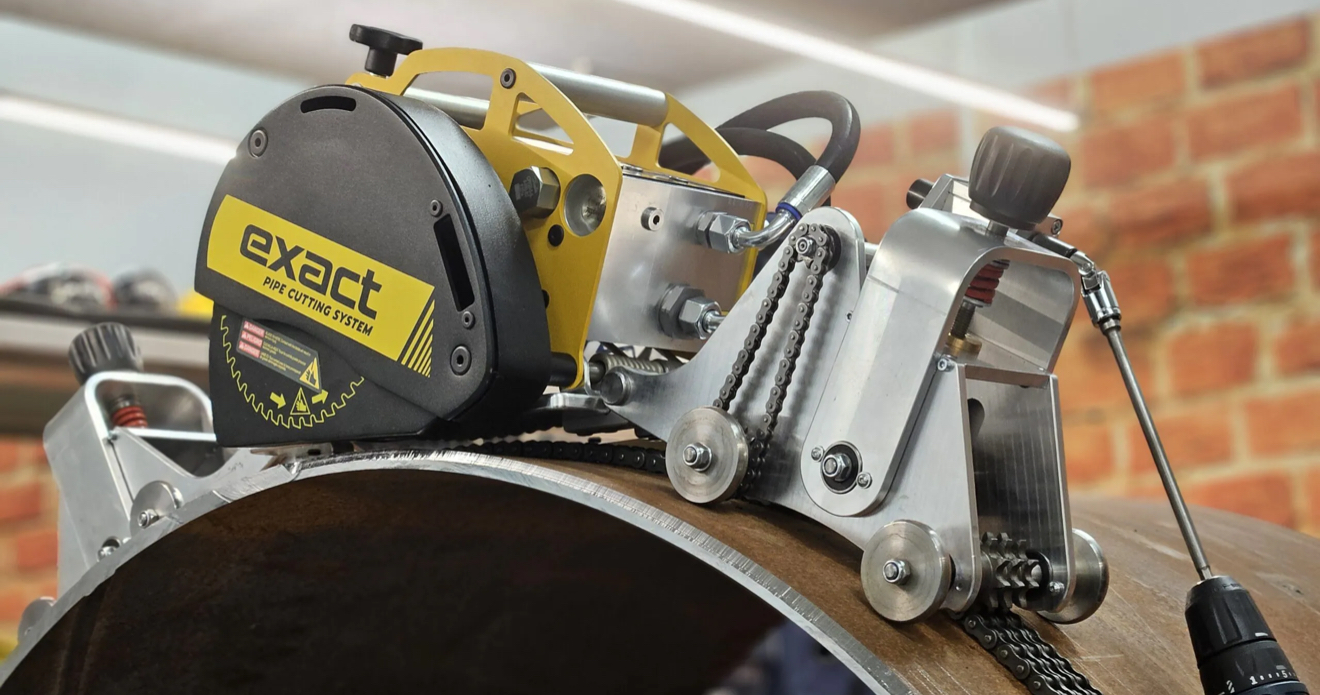

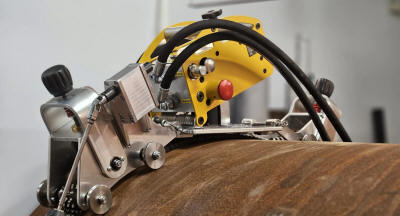

 Exact HYDRA Infinity
 Portable pipe cutting system Ø 14" - No upper limit

Pipe Ø (OD) 14“ - NO Upper Limit
Wall thickness 1“ Steel, 1.8" Plastics

A safe, precise and very powerful, yet compact hydraulic pipe cutting system compared to other cutting methods. Suitable for wet and even underwater solutions.

As the name indicates, HYDRA Infinity is pipe cutting without boundaries in terms of cutting capacity for pipe outside diameter. You can basically cut all pipe sizes (outside diameter) from 360 mm (14”) upwards. It has blade depth adjustment as standard.

Exact HYDRA Infinity is a new type of pipe cutting system, unlike the other Exact models, it uses a chain type of gripping mechanism. Thanks to the flexibility of the chain segments, it allows you to extend the chain segment gripping unit as much as you like.

Thanks to this innovative method, the boundaries of pipe cutting diameter limitations are no longer an issue. The hydraulic power can be taken from a power pack or from an excavator (important: with an oil fluid flow divider) .

Cut+Bevel package is available for cutting and beveling cast iron & plastic pipes in one process.

Technical details

Product number  7010408
Pipe cutting capacity (OD)  14" to no upper limit
Max. wall thickness  1" Steel, 1,8" Plastics
Pipe material  Aluminum, Ductile (nodular cast iron), Glass fiber, Multi-layered materials, Plastic, Stainless/Inox steel, Steel.
No-Load speed  3400 r/min
Blade diameter  140 mm (5.51”), 165 mm (6.5"), 180 mm (7.2"), 190 mm (7.6")
Mounting bore  2.44” (62mm)
Hydraulic pressure max.   2200 PSI (150 bar)
Hydraulic flow max.  25 l/min
Weight  59 lbs

Set Includes:


Exact PipeCut System Shoulder Bags, 2 pcs
Exact PipeCut Infinity motor unit with Cermet 165 blade installed
Tensioning device
Tensioning device with crank
Chain segments for attaching the saw to pipe:
2 m, 2 pc
1 m, 1 pc
0,5 m, 1 pc
0,2 m, 2 pc
0,1 m, 1 pc
Operating instructions
Tools to change the blade


Description
lbs. 		No. $
Price		 Add to Cart
 Exact HYDRA Infinity Saw 65.00 7010408 $11,360.00
 Exact HYDRA Infinity Saw Cut & Bevel Package 3.00 7020430 $610.00
 Exact Infinity gearbox power drill with tensioner 13.00 7020998 $1,320.00
 Exact Infinity 6'.6" Chain 10.00 7010433 $410.00



HYDRA Infinity Saw Cut & Bevel Package
Infinity gearbox power drill
Exact Infinity 6'.6" Chain


Watch a short video click here



Exact – Ground-breaking Solutions for Pipe Cutting and Finishing

The Exact system: innovations that render pipe handling effortless, accurate and fast
Over the last ten years, Exact has developed a number of modern tools for pipe cutting, finishing and processing. Innovative products from Exact raise the pipe working efficiency to an entirely new level.

The Exact system is suitable for all pipes and materials

Exact pipe cutters are suitable for all kinds of pipe materials; a single machine allows cutting pipes of greatly differing sizes. Pipe cutting is significantly faster as compared to traditional methods. The resulting surfaces are precise and of uniform quality – the pipes are ready for joining right away.
Exact pipe cutters can be used almost anywhere, since in most countries they are approved for indoor use – for example, as compared to angle grinders, the fire hazards are substantially lesser.
Exact pipe cutters are easy to move around and effortless to use, for it is not necessary to support the device while cutting. Since the cutting is fast and does not require strength, the physical work strain is very low.
The ergonomic design of Exact pipe cutters allows avoiding accidents at work and the related absences. Moreover, the risk of developing work strain-related maladies is reduced.

Efficiency and user-friendliness benefit the entire company

Quick and easy-to-use Exact pipe cutters significantly improve work efficiency. The results are of higher quality and achieved faster as compared to former methods.
The Exact products are designed to be long-lived and easy to maintain. It is quite usual for pipe cutters commissioned ten years ago to still be in daily use.
Everybody wins: the employees feel better at work, the work progress is accelerated, and improved productivity is good for company profits.

World’s best in product design 2013

In 2013, the Pipecut 220E, 280E, and 360E pipe cutters by Exact Tools won the internationally prestigious Red Dot Design award. The award is granted to technically advanced and operationally superior design, and the competition involved nearly 5,000 products from all over the world.
Exact pipe cutters represent sustainable development: upon pipe processing, the tools’ power consumption is only 15% of that of an angle grinder, and all tool components are recyclable.
Exact Tools – better results with less work.

To order from CMS Industrial Equipment Corporation, simply shop online, or fax your order to the number below. The staff at our US offices can also help you make the best choice for all of your pipe cutting needs.

Warranty terms

If the Exact PipeCut Saw becomes unusable due to material or manufacturing defects within the Warranty Term or *Extended Warranty Term at our discretion we will repair the Exact PipeCut Saw or supply an entirely new or factory reconditioned Exact PipeCut Saw at our discretion, at no charge.

Warranty Term / *Extended Warranty Term

The Exact Tools Warranty Term is for 12 months from date of purchase. *By registering on-line you will receive an additional 12 months Warranty Term for FREE. Warranty registration must be completed within one month of purchase.
